HP 5 - 5 Head Aluminum Profile Hinge Drilling Machine

Technical Details

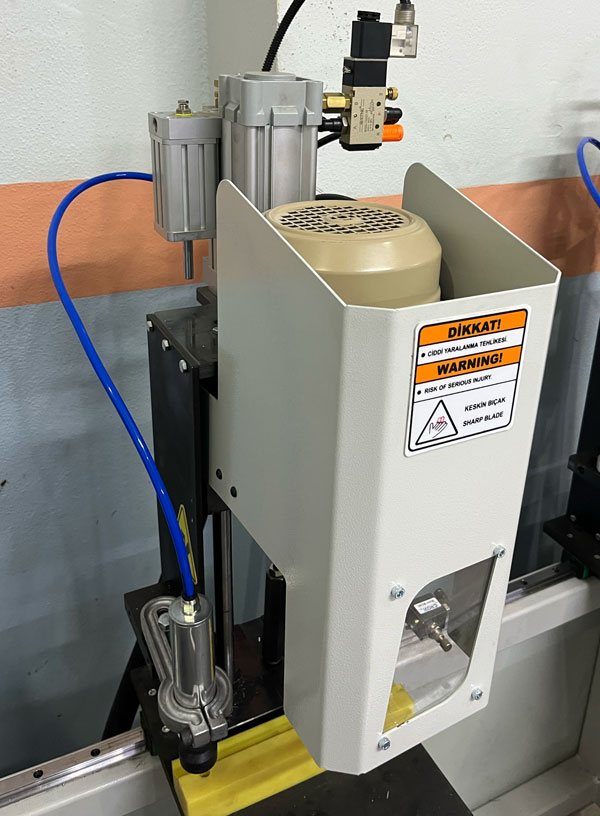

The aluminum frame is designed to open the hinges used on the doors. The left head is fixed, the other 4 heads are mobile.

Motor Power No.5x1.1kW

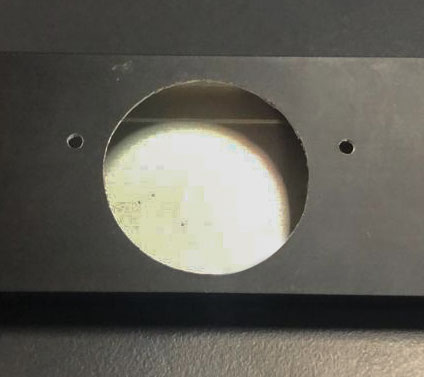

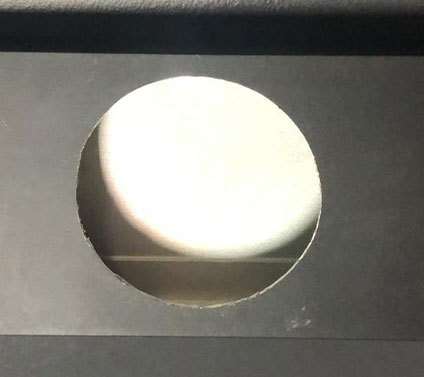

Hole Diameter Q35mm
Max. Profile Length 3000mm
Air Pressure 6-8bar
Electrical Connection 400V 3ph 50hz

Other Specifications

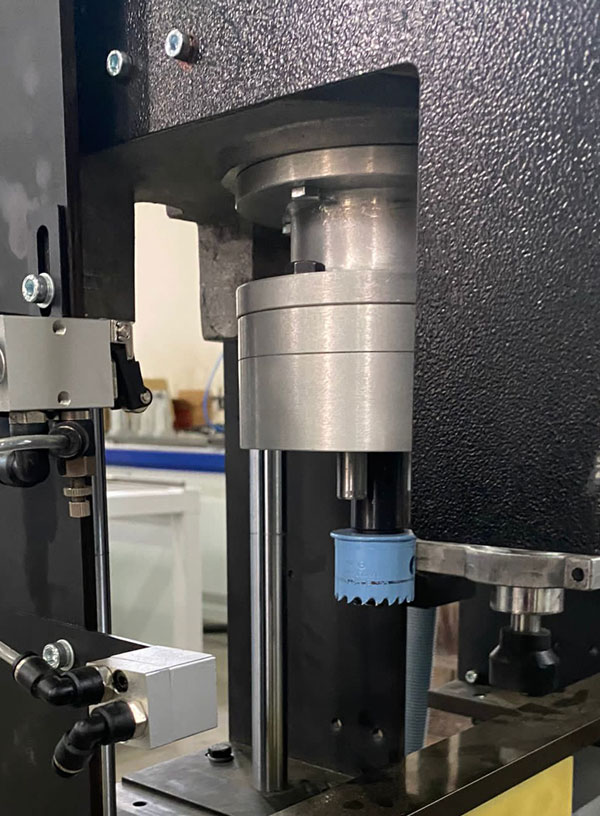

Vertical&Horizontal Clamping

Vertical&Horizontal Clamping

Perfect profile fixing

Coolant Spray

Coolant Spray

Coolant Spray unit provides long-lasting punch life time and burrless operations.

Options

Drilling Unit With Side Drills

Drilling Unit With Side Drills

Custom Axis made drilling units with side drills.

Hydropneumatic Drilling Feed

Hydropneumatic Drilling Feed

Precisely adjustablde drilling speed for long lasting punch life time and burrless holes

Digital Position Reader

Digital Position Reader

Indicates the cutting length which is set manually.
