Toskar Woodmaster 450 D Double Head Cutting and Drilling Machine

Technical Details

HIGHER CAPACITY AND PRECISION

WM 450 D designed to cut wooden, composite and aluminum door frames in 45/90 degrees and drill dowel holes for perfect corner joints.

Blade Size 450mm
Min-Max Cutting Length 650-2550mm
Cutting Capacity 45 degrees WxH:440x65mm
Motor Power No:2 2.2kW / No:2 1.1kW
Electricity 400V 3ph 50hz
Air Input 6-8bar
Dimensions WxLxH:1800x3750x1650
Weight 800kg

Standard Features

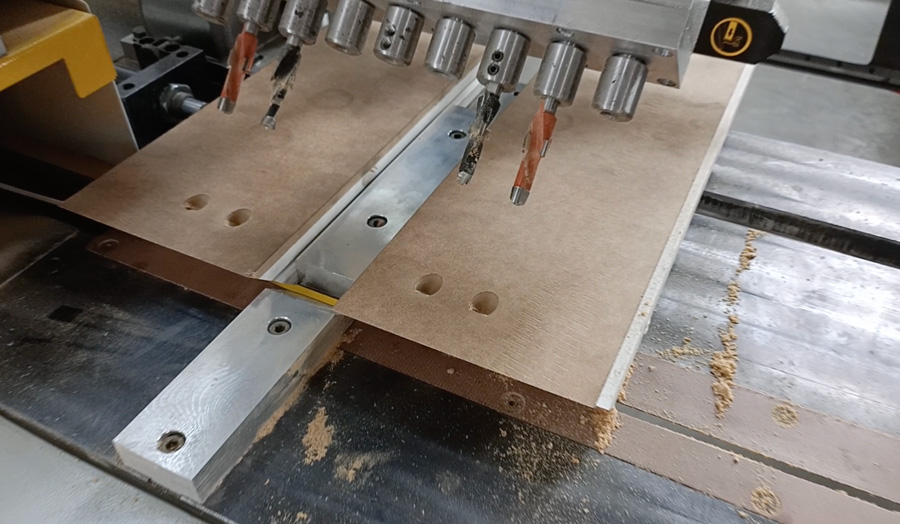

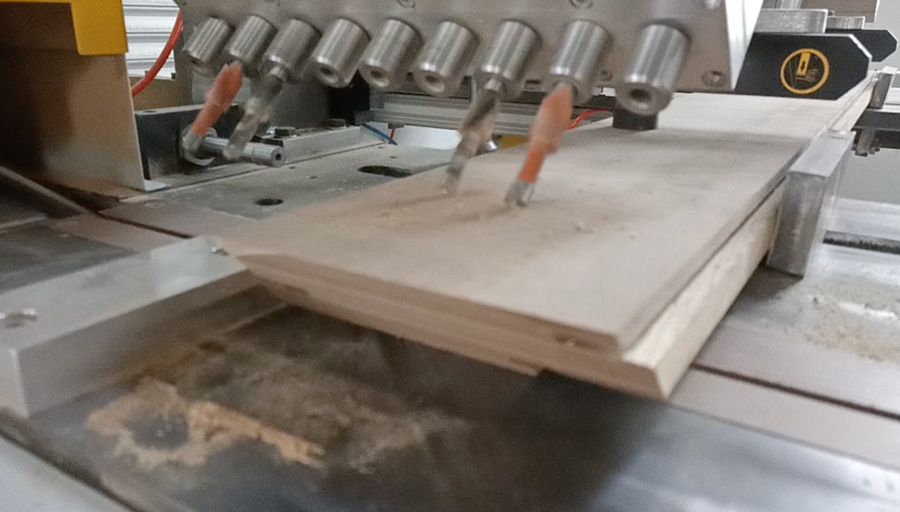

  1. 45/90 degrees cutting and drilling in 45 degrees
  2. Right cutting and drilling head is moveable
  3. Robust frame and X Axis traverse on linear guideways

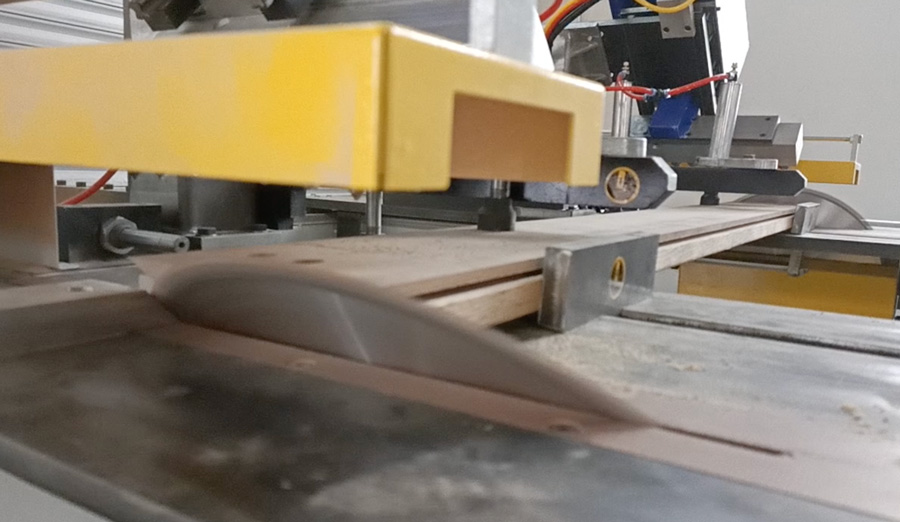

  4. No:2 x Q 450mm saw blades

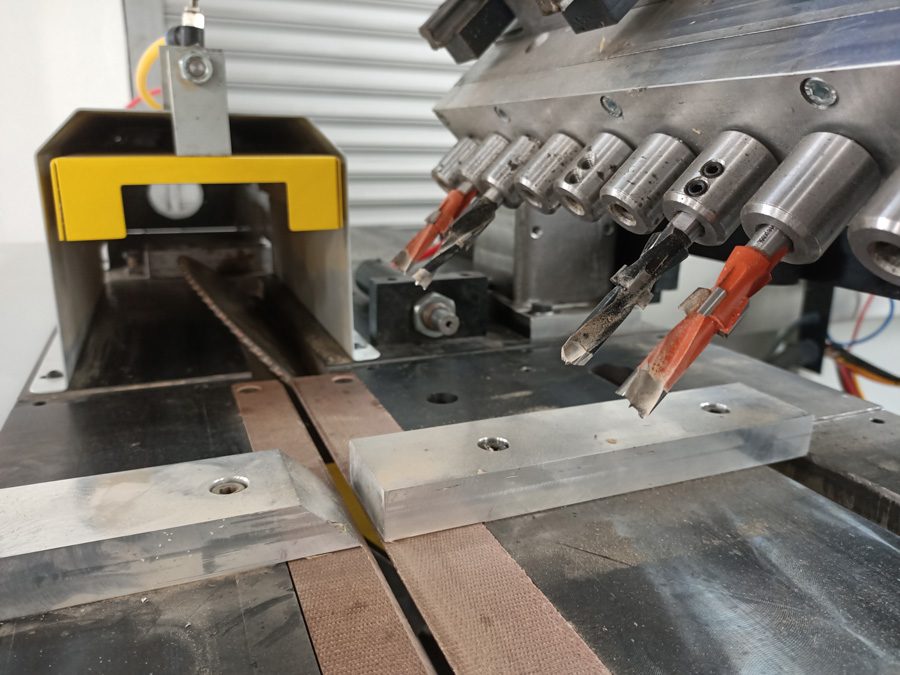

  5. No:2 x No 11 Boring Unit
  6. Max. Cutting Capacity WxHxL (45 degrees): 440x60x2550mm
  7. Capability to cut 2 profiles up to 200mm width
  8. Manual X axis traverse
  9. Pneumatical control on cutting and drilling units
  10. Pneumatical vertical & horizontal clamps
  11. CE Norms
Capability to cut 2 profiles up to 200mm width

Capability to cut 2 profiles up to 200mm width

Thanks to bigger saw blades and boring units Toskar Woodmaster 450D can cut 2 profiles up to 200mm width

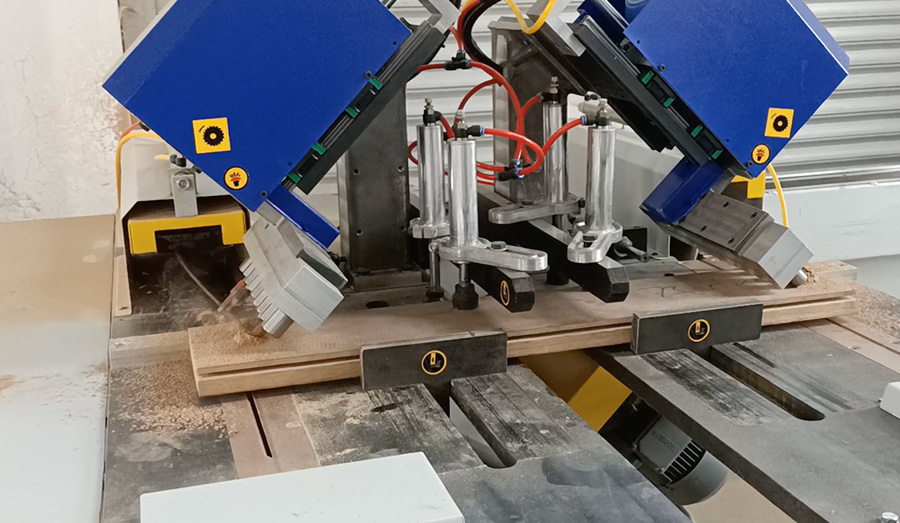

Pneumatical vertical & horizontal clamps

Pneumatical vertical & horizontal clamps

Strong profile clamping for perfect corners

Options

Digital Position Reader

Digital Position Reader

Indicates the cutting length which is set manually.

Servo Motorized X Axis Traverse

Servo Motorized X Axis Traverse

Automatically positions the cutting length with the tolerance of -/+0.05mm

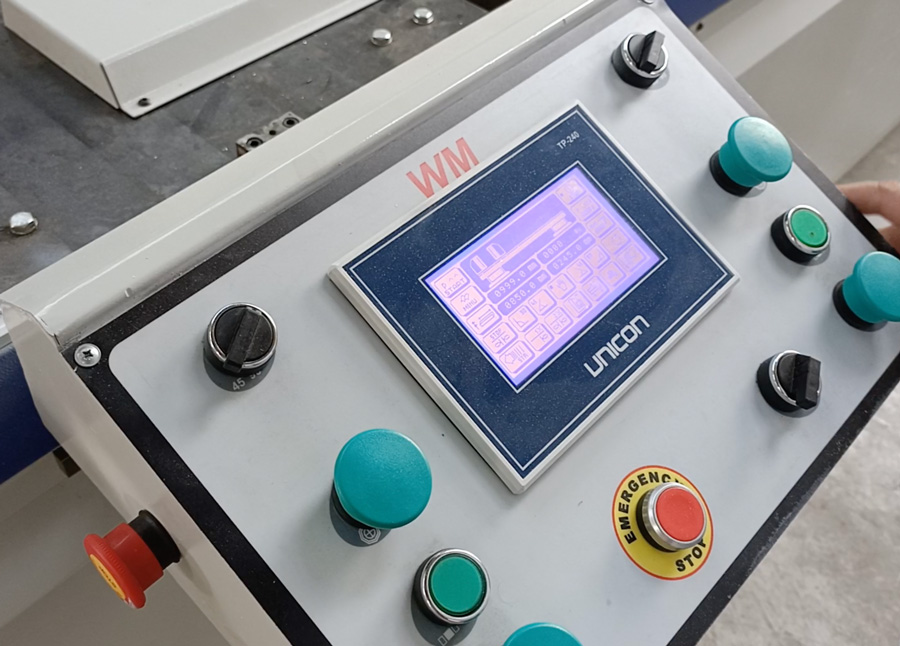

Touchscreen Controller

Touchscreen Controller

User-friendly interface with multi-language options. Offers for fast and error-free cutting with cutting list ability.

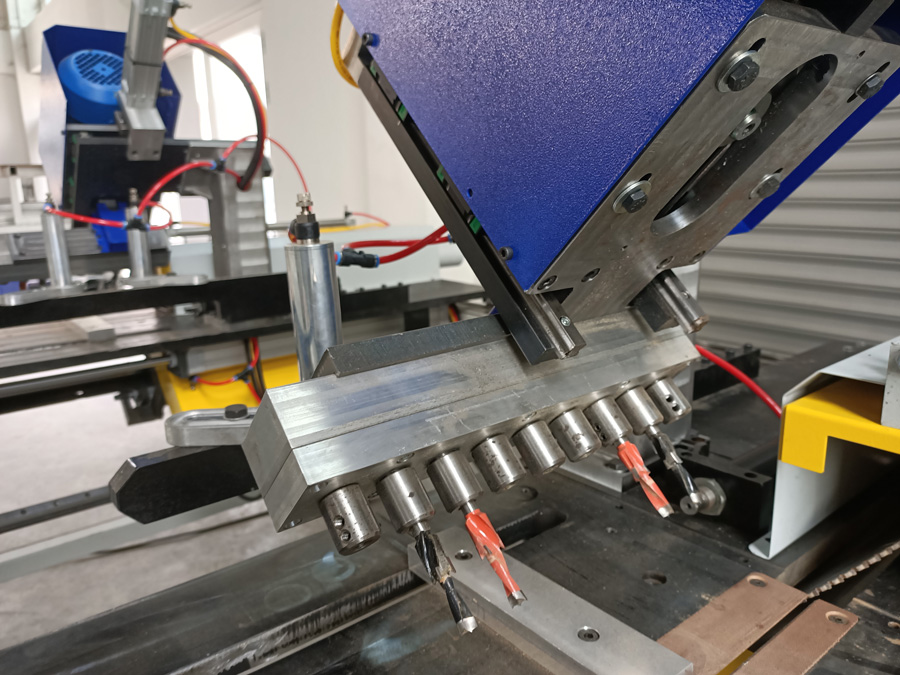

Special Boring units

Special Boring units

Specially designed boring units accordingly to your custom needs
