Designed to groove all required the edge, trimming and seal lines of door frames in a single work cycle.
Standard Features

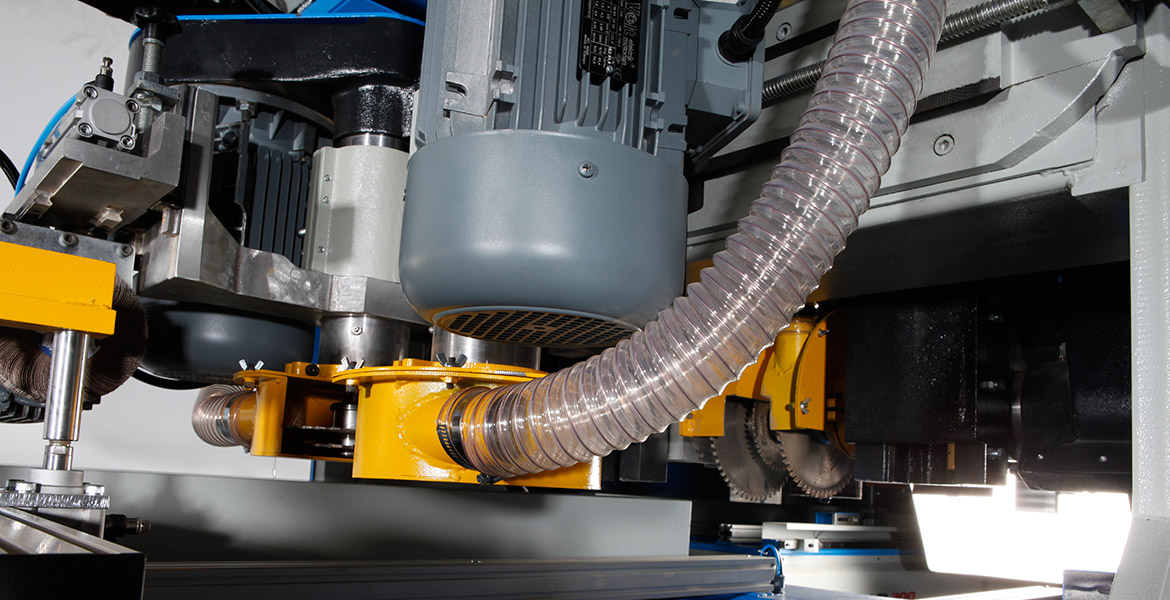

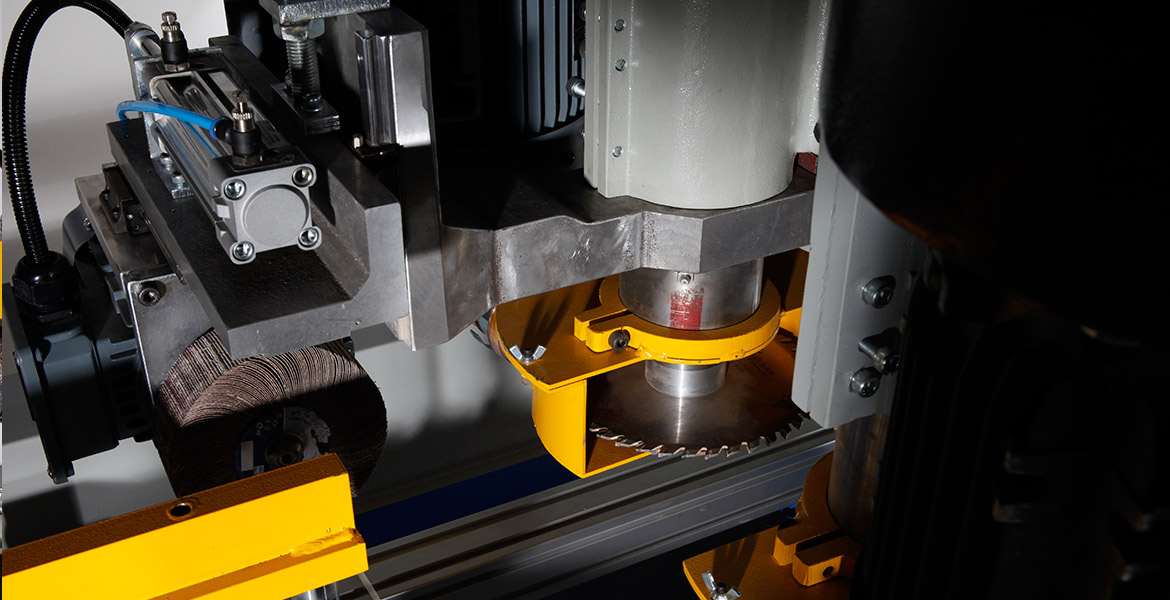

- Edge lines,trimming lines,rabbet edges and width sizing can be cut with 6-8 milling saws automatically.
- Operation time is 17sec. / m .

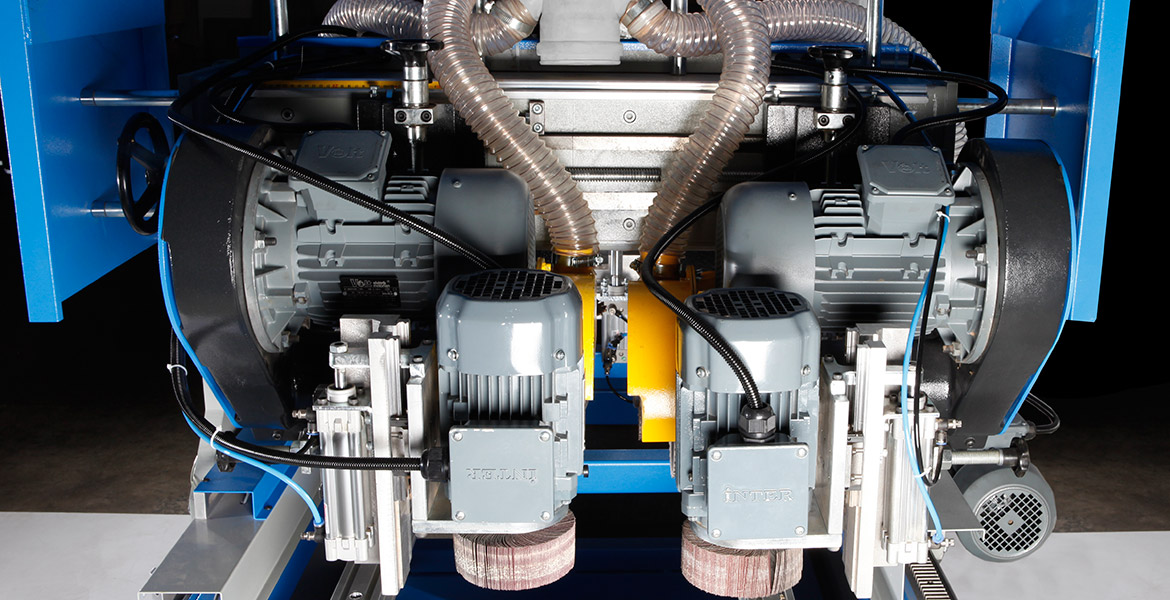

- No: 2 Vertical Motors No: 2 Horizontal Motors .
- Manual width adjustment
- Min.-Max. width 100-400 mm
- Grooving positions can be adjusted manually.

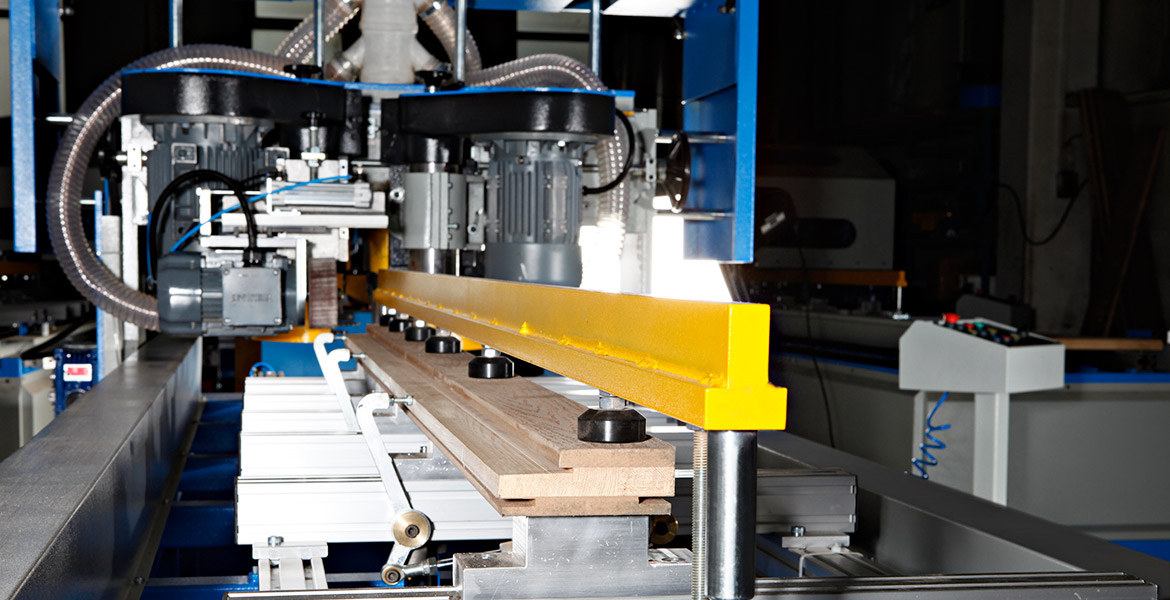

- Strong clamping with Upper pressure beam
- PLC Contoller

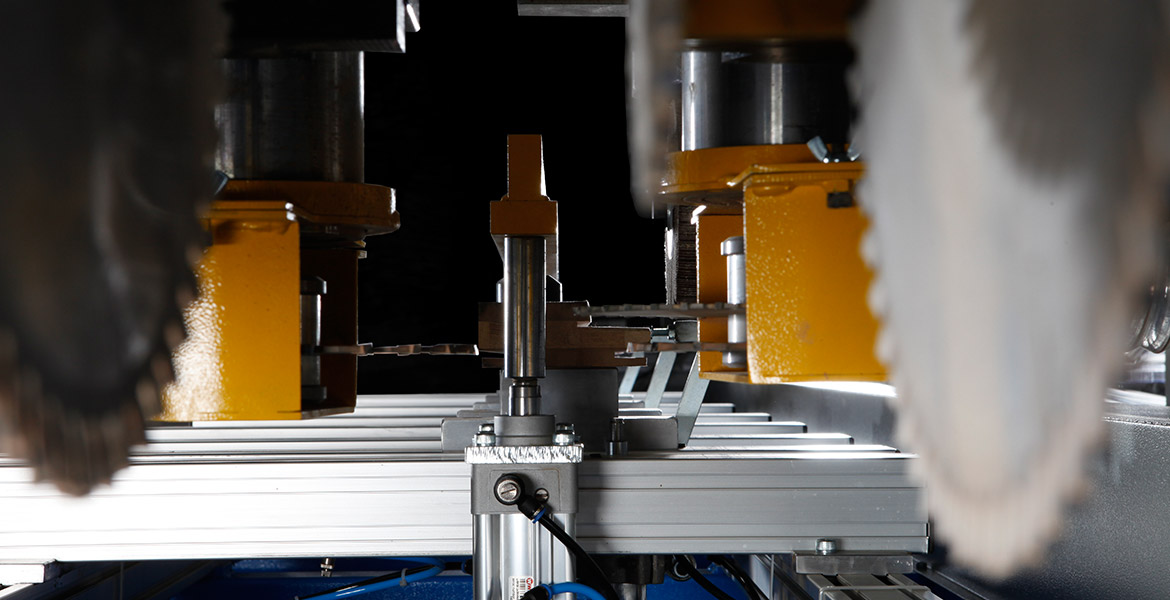

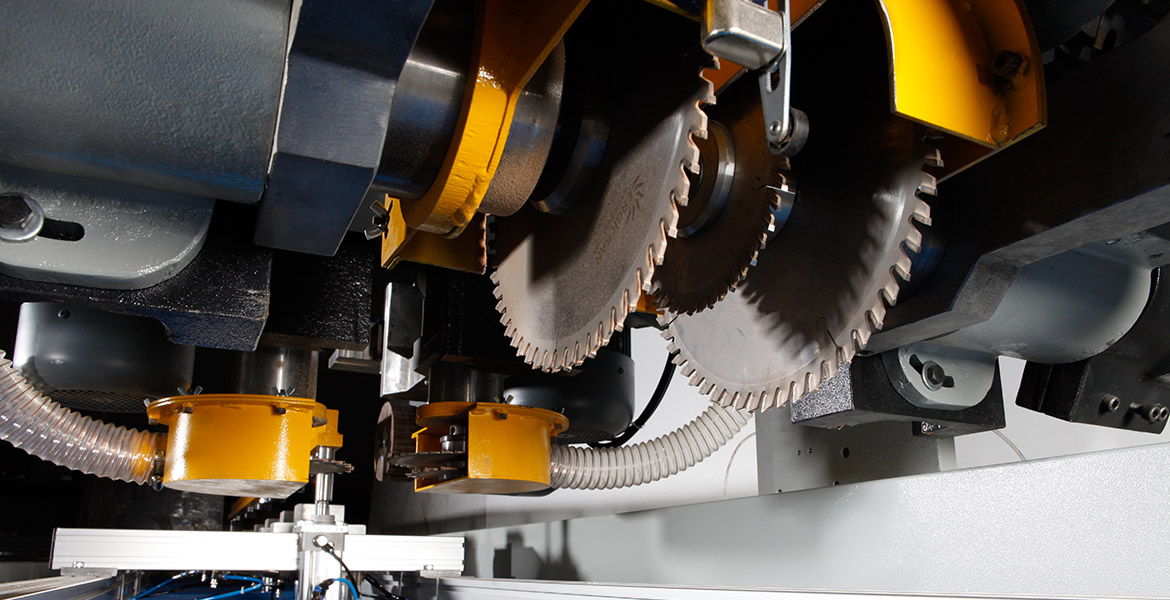

- 6/8 saw blades can be placed .
Optional Features
- Automatic Width Adjustment

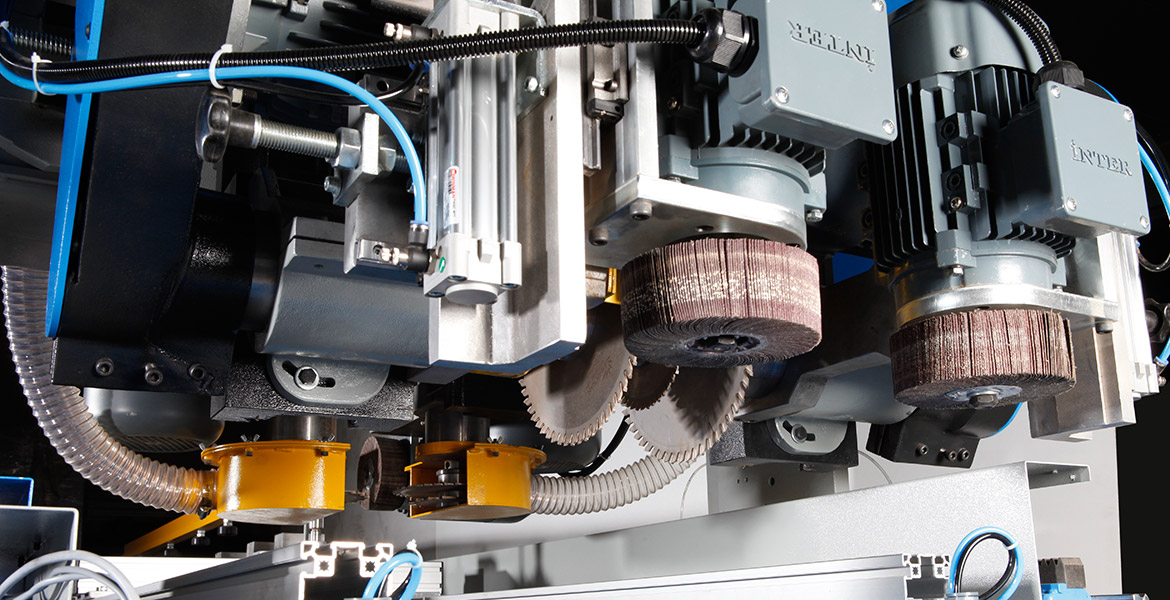

- Sanding Unit
Technical Features
- Motor Power : 4 kW
- Reductor Power : 0.37 kW
- Air Pressure : 6 bar
- Min.-Max. width 100-400 mm . .
- Min.-Max. working height 30-80 mm . .
- 380 V
- 6-8 bar
- Height : 1600 mm
- Width : 1500 mm
- Length :4200 mm (5200 mm with sanding Unit)
- Weight : 1250 kg
