IN EVERY FIELD OF FURNITURE
Our ICON CNC Drilling Machine model is designed to meet the evolving needs of the furniture industry with flexibility and precision with TPA LOGIC+ software system, independent double holder, large drilling units and 4kW milling motor.
Areas of Use
Kitchen
Furniture
Office
F15+1 Hole Group (9 Vertical, 2+2 Horizontal X, 1+1 Horizontal Y, Saw)
4kW Milling motor
2 Independent Servo Grippers (X axis)
2 Pcs 3 Piston roller presses for perfect part fixation
Download ICON Brochure
You can download our e-brochure for detailed information about our ICON CNC Drilling Machine model.
Standart Features
- Ability to process on 5 surfaces of the panel
- Fast and precise panel handling with double gripper independent of X-axis
- Ability to drill 1300mm holes from outside to outside
- Drilling and milling operations in Y axis
- Drilling and milling operations in Z axis
- 15+1 Hole Group (9 Vertical, 2+2 Horizontal X, 1+1 Horizontal Y, Saw)
- Pneumatically controlled reference point
- Unlimited track length
- Air Table
- Movement on linear rail in all axes
- 0 setting time
- 0 tool setting time
- High efficiency and flexibility
- 4kW Milling Motor
- Efficient automatic lubrication on all axes
- Brushed Exit Table
OPTIONAL FEATURES
- Conveyor system at the exit
- Barcode reader
- 4 Auto. Team change

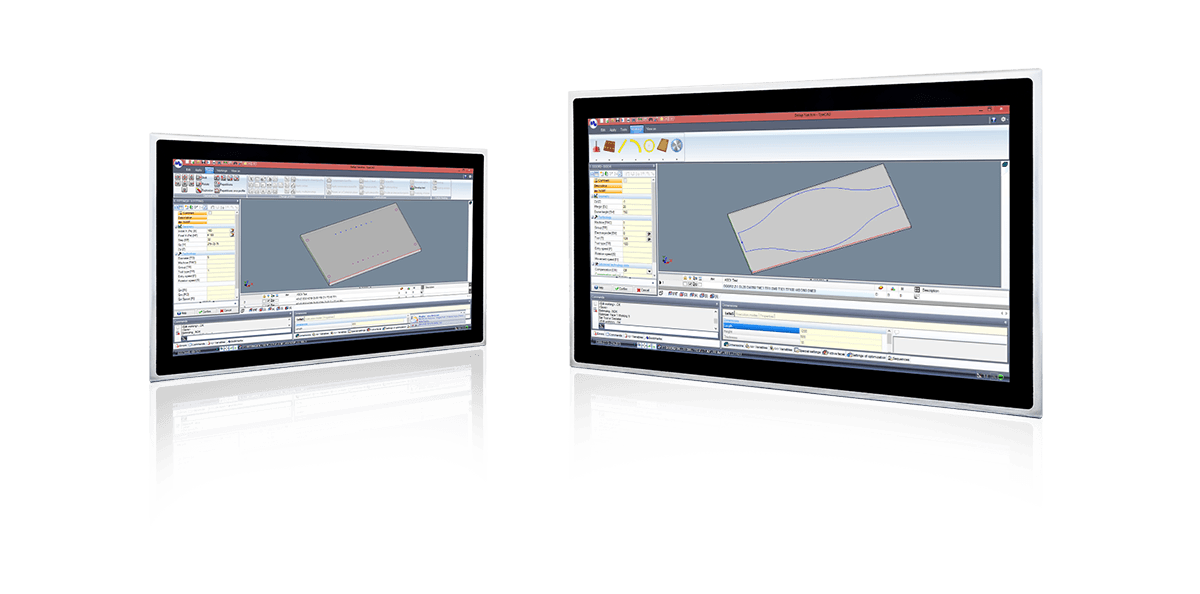

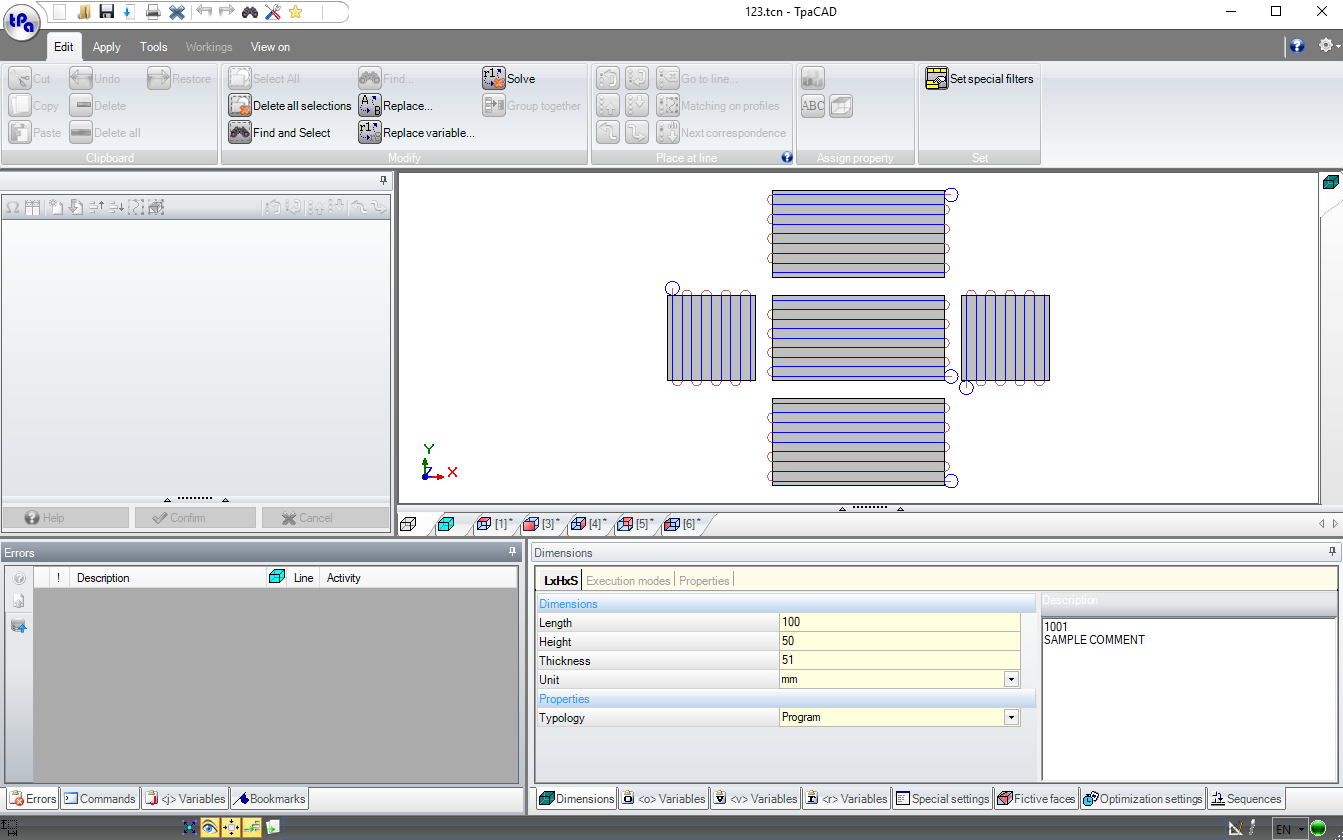

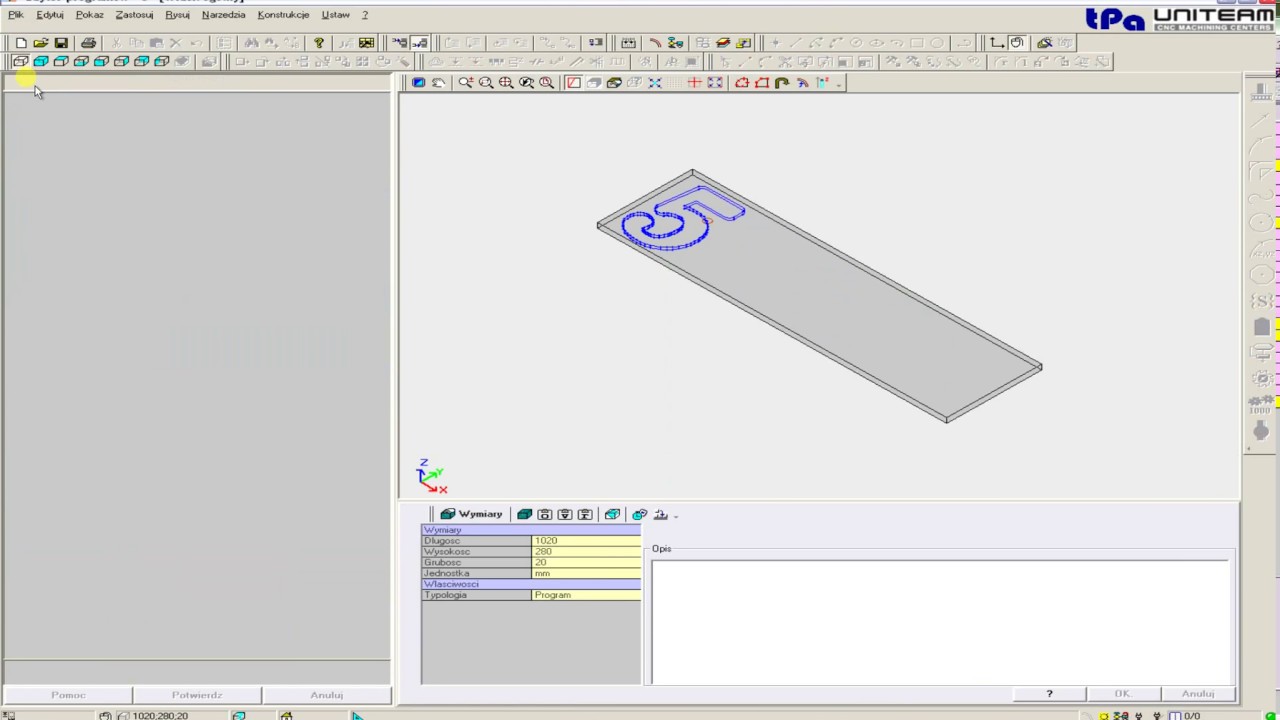

TPA LOGIC+ SOFTWARE
TPA LOGIC+, with its user-friendly software, allows you to program your machines with creativity and flexibility beyond your imagination by importing/exporting both DXF and G-Code, the basis of CAD/CAM Applications, in 15 languages.
- CAD/CAM (DXF/G Code) transfer feature from your office with TPA LOGIC+ Software
- 100% control with 21.5′ Screen
- Fast programming with easy mirroring and automatic parametric assignment
- 2D/3D milling with CAD/CAM compatibility
- Ability to issue sequential and quantity work orders
- 1300mm wide side hole drilling
- 2 independent servo holders for small part machining
- Barcode printer preparation
- Profile, lettering and curvilinear blanking drawings for perfect milling operations
- Unlimited panel length and the ability to drill panels up to 1300mm wide from edge to edge
