Carefully selected components, a sturdy steel frame (ST44 A1 steel) and wide variety of standard features like 2D-3D Touchscreen Controller,two Axis Servo Backgauge (X,R)(optional up to 8 axes), CNC crowning, Quick Release Promecams and 510mm throatdepth makes EasyfabII to be your best friend in your jobshop.
Standart Features
- Robust steel frame (ST44 A1) machined with high precision (up to 0,01 mm) and welded by professional certified welders.
- Taşlanmış ve krom kaplı yüksek kalitede keçe kullanılmış piston ve silindirler.
- NexT 3.0 3D/2D 17” Touchscreen CNC Controller OR Cybelec Cybtouch15 15“ Touchscreen CNC Controller
- Hoerbieger Hydraulics
- 510 mm Throat Depth
- High Stroke and Daylight

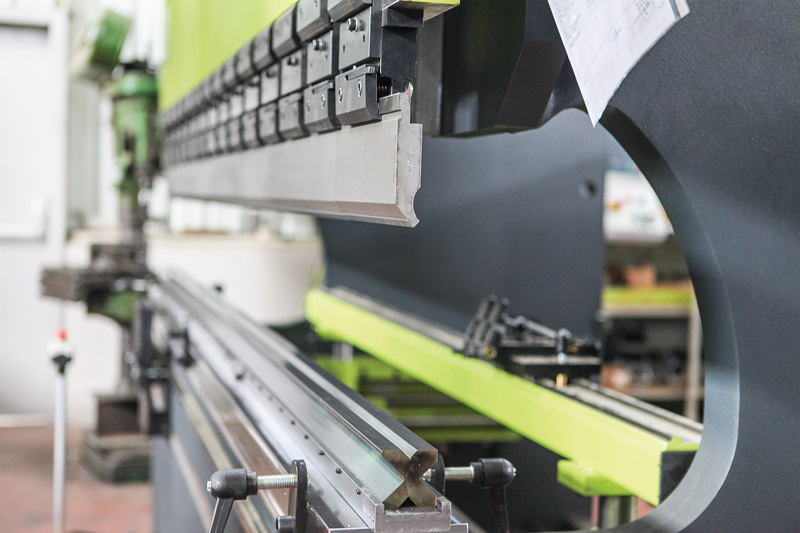

- Quick Tool Clamps
- Y1 – Y2 Synchronized hydraulic cylinders
- High resolution linear scales for synchronized ram operation

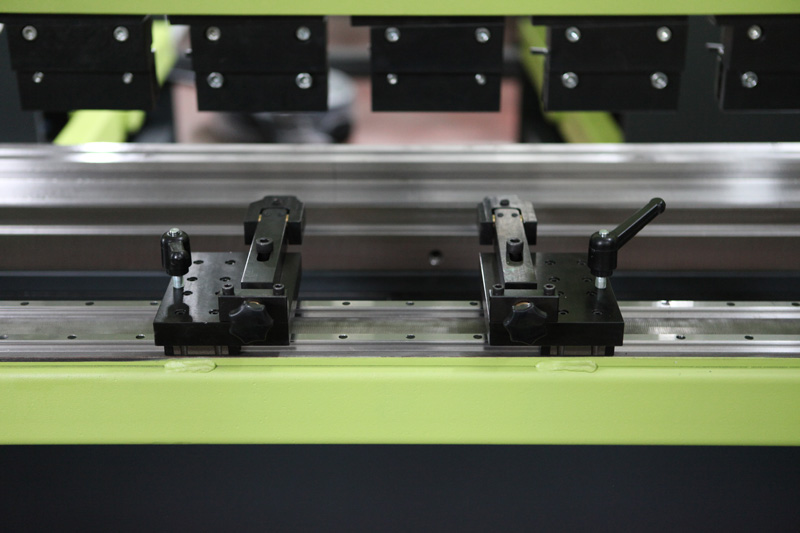

- X,R axes servo backgauge running on ballscrews and linear guides
- Sliding Front Support Arms

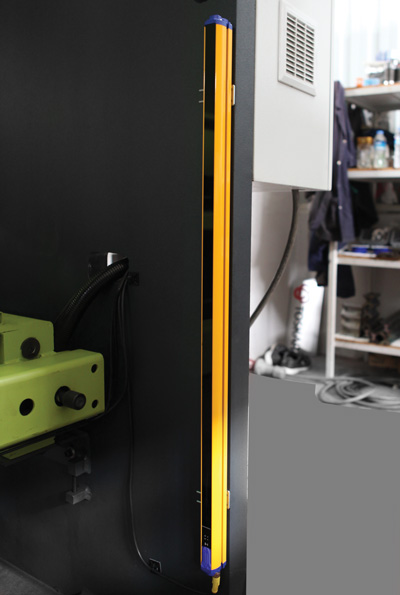

- Side Guards and back photocells for safety
- Siemens Electrical Components
- High Safety Pilz PLC system
- CNC Crowning System
Optional Features
- Special stroke, daylight and throat

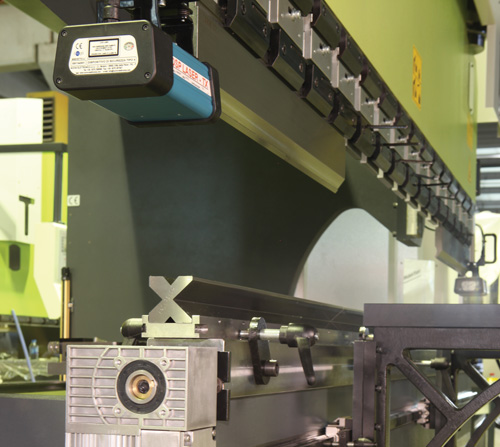

- Laser guards for finger protection (AKAS, LaserSafe)
- Oil Heater, Oil Cooler
- Tooling
- .
- .
